< Based on NVIDIA GeForce GTX 1060 embedded GPU, 6GB GDDR5
< 3.59 TFLOPS single/double precision peak processing ability
< 4x DisplayPort
< Best compatible with LinkedHope® processor boards
< Air Cooling and Conduction Cooling versions configurable
< PCIe 3.0 x8

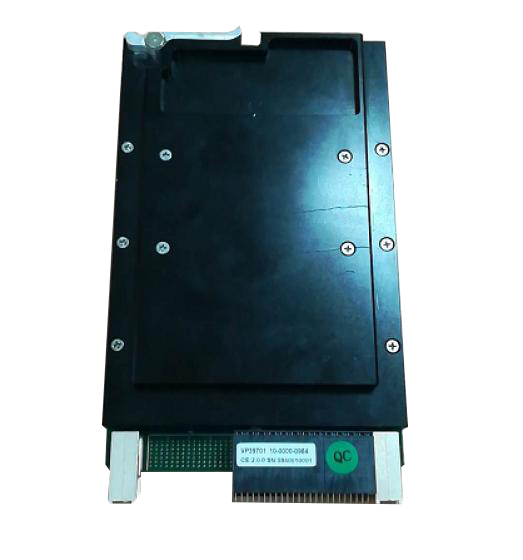

VPX Image & Video Processing Board
Based on NVIDIA GeForce GTX 1060 embedded GPU architecture, VP39701 is a high-performance 3U VPX GPU image & video processing board designed for applications of embedded image processing and GPGPU.
VP39701 has 2x DisplayPort and 1x VGA on front with the resolution up to 3840*2160. Besides, GPU of VP39701 is equipped with 6GB GDDR5 video memory, 3.59 TFLOPS single/double precision peak processing ability and 1280 CUDA cores. Therefore, VP39701 is highly suitable for HD output (1920x1080), 4K output (3840x2160), high-performance parallel computing and other applications and fields.
Based on NVIDIA GeForce GTX 1060 GPU, the chipset of VP39701 has excellent power efficiency, and has 3 times the performance of the formal Gen chipset. GeForce GTX 1060 is able to provide extraordinary image, video and GPU computing performance, and is the ideal solution for applications that have high requirements on performance, like medical imaging, game, military and defense, aerospace, etc. The 1280 CUDA cores on VP39701 can not only improve the board performance, but also provide remarkable functions including video transcoding acceleration, physical simulation, ray tracing, etc.
Target applications:
Image & Video Processing, Radar/Sonar Digital Signal Processing, Video Command and Monitor
Specification | Dimension | |
n VITA46、VITA65 n MOD3-PAY-2F2U-16.2.3-6 profile compliant | n 3U n 4HP/5HP | |
Video Processing | Environment | |
n H.264, n VC1 n MPEG2 1080p | n Operation temperature: -40℃~+70℃ as default n Storage temperature: -55℃ to +85℃ | |
Graphic Chipset | Graphics Computing | |
n NVIDIA GeForce GTX 1060 n 1404MHz main frequency/1670MHz DRAM frequency n 6GB GDDR5 video memory, 192-bit width, 192GB/s | n 1280 CUDA Cores n 3.59 TFLOPS single/double precision peak processing ability n DirectX 12 API n OpenGL 4.5, OpenCL 1.2 | |
Voltage | PCIe Port | |
n +12V, +5V, +3.3V | n x8 Lanes PCI Express 3.0 | |
Power Consumption | Display Interface | |
n Typical power consumption: 80W | n Front: 2x DisplayPort (with a resolution of 7860x4320) n Rear: 2x DisplayPort on VPX P2 (with a resolution of 7860x4320) |
