< Intel® Broadwell-DE SoC Processor, up to 16 cores
< Up to 4 SO-DIMM DDR4 memory, ECC or none ECC, up to 64GB
< Integrated dual 10GBase-KR Ethernet
< Up to 24 lane PCIe 3.0, 8 lane PCIe 2.0
< COM Express R3.0 specification (Type 7) or VITA 59 form factor
COM Express Modules based on Intel® Xeon D1500 family

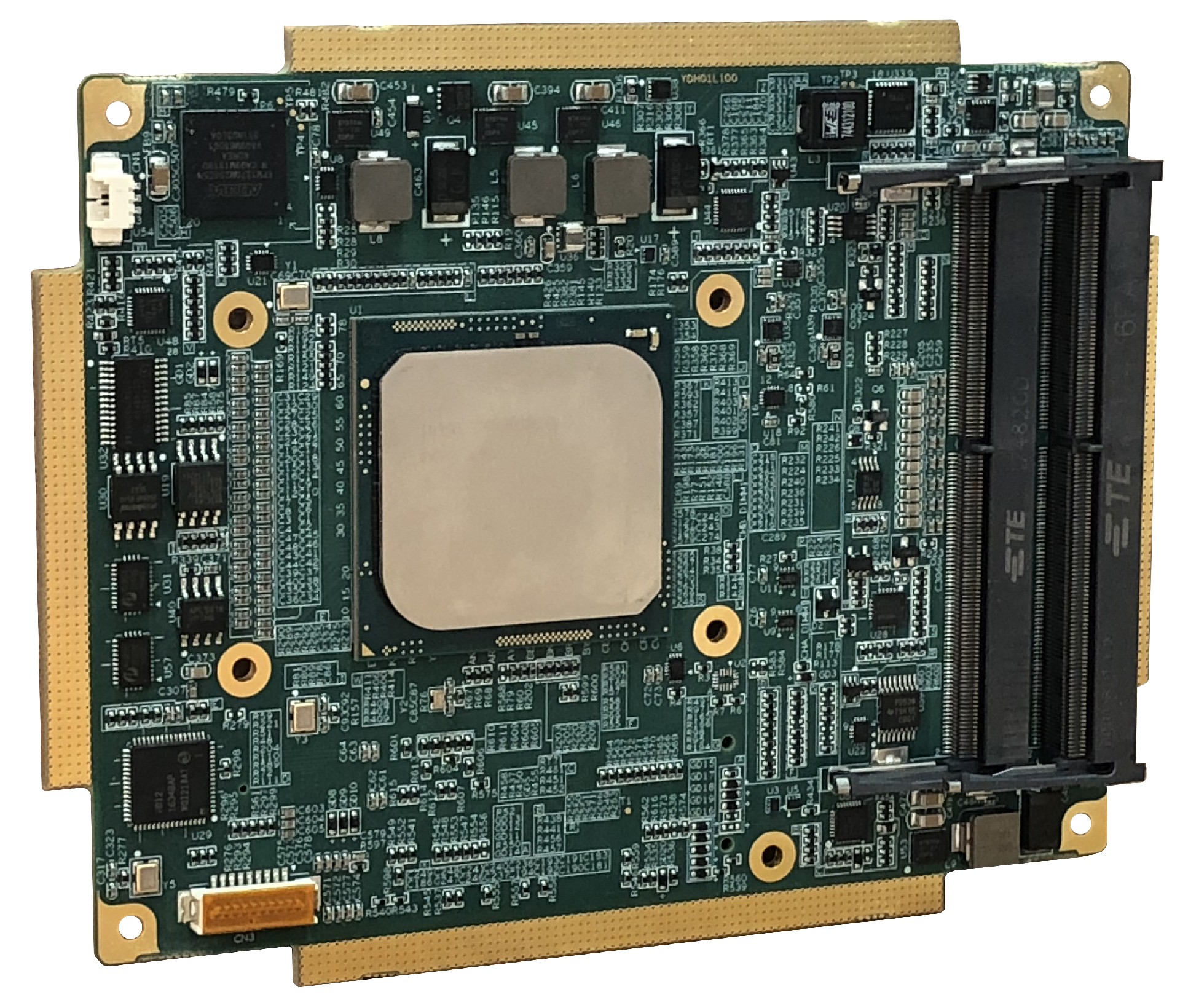

CM22201 is a Type 7 COM Express® module based on Intel® Broadwell-DE Platform, Xeon D-1500 family Processors. Pinout is compliant with PICMG COM.0 R3.0 specification.
CM22201 has up to 4 stacked SODIMM sockets (2 stacked on TOP, 2 stacked on BOT) supporting up to 64GB of DDR4 ECC or none ECC memory. High speed Input/Output channel include 24 PCIe Gen3 lanes (up to 8Gbps) and up to 8 PCIe Gen2 lanes, also an integrated intel 10Gb Ethernet controller which supports 2 10GBASE-KR interfaces, relevant sideband signals and NCSI. It provides high speed IO ports, such as SATAIII interface (up to 6Gbps), USB3.0 ports (up to 5Gbps).
CM22201 is equipped with SPI AMI EFI BIOS with CMOS backup supporting remote console through Serial Port, watchdog timer.
With up to 16-core CPU on board, CM22201 provides high performance computing with balanced power consumption. CM22201 works well in a wide range temperature environment. It is ideal for the high-bandwidth and processing -intensive requirements of industrial and edge computing applications.
CM22201 fully complies with VITA59 standard, as defines extra considerations to improve the cooling efficiency by using the entire PCB.
Target applications:
communication device
Intelligence analysis
Data Processing
Edge Computing
CPU | I/O | |
n Intel® Xeon-D1500 family processor： Intel® Xeon® D1577 @1.3GHz|2.1GHz (16Cores ,24M Cache, 45W TDP) Intel® Xeon® D1548 @2.0GHz|2.6GHz (8Cores ,12M Cache, 45W TDP) Intel® Xeon® D1537 @1.7GHz|2.3GHz (8Cores ,12M Cache, 35W TDP) Intel® Xeon® D1527 @2.2GHz|2.7GHz (4Cores ,6M Cache, 35W TDP) Intel® Xeon® D1517 @1.6GHz|2.2GHz (4Cores ,4M Cache, 25W TDP) Intel® Xeon® D1508 @2.2GHz|2.6GHz (2Cores ,3M Cache, 25W TDP) Intel® Xeon® D1559@1.5GHz|2.1GHz (12Cores ,18M Cache, 45W TDP) Intel® Xeon® D1539 @1.6GHz|2.2GHz (8Cores ,12M Cache, 35W TDP) Intel® Xeon® D1519 @1.5GHz|2.1GHz (4Cores ,6M Cache, 25W TDP) | n 2x SATA III，6.0Gb/s n 4x USB 3.0 n 2x USB 2.0 n 1x SPI bus n 8x GPIO n TPM2.0 n 2x UART n 1x Watchdog n 1x SMB bus n 1x I2C bus | |
Memory | Onboard 2D video card CONN | |
n Support up to 4 DDR4-2133 SO-DIMMs n max 64GB, ECC or none ECC | n 1x PCIe 2.0 x1 bus n 3.3V main pwr | |
PCIe | Ethernet | |
n x24 PCIe3.0 n x8 PCIe2.0，one lane muxed with internal GbE, one lane muxed with onboard 2D video card connector | n 1x industrial 10/100/1000Mb Ethernet n 2x 10G-KR, support NCSI | |
Audio | Power | |
n 1x HD AUDIO | n Input DC 8.5V~20V n Power consumption <56W | |
Dimension | Temperature | |
n 95 x 125mm (COM Express Type 7) n 105 x 135mm (VITA 59) | n Operation: -40℃ ~ +85℃ n Storage: -55℃ ~ +85℃ | |
BIOS | Operating System | |
n AMI UEFI | n Linux, Windows Server 2012/2012 R2/ 2016, Windows 7, Windows 10, VxWorks 7.x |
