CM22002
< COM Express type 6 compatibility
< Mini-PCIe Expansion
< Supports most current processors including 5th Generation Intel® Core™ i7
< Extended Temperature Range: -40℃ to +85℃
- 产品中心
- 解决方案
- 新闻动态
- 技术支持与服务
- 合作伙伴
- 关于凌昊智能
- 联系我们
我们为你提供
稳定可靠的平台服务
北京市丰台区科学城中核路一号2号楼七层
咨询热线：400-087-8800
010-67777760（总机）

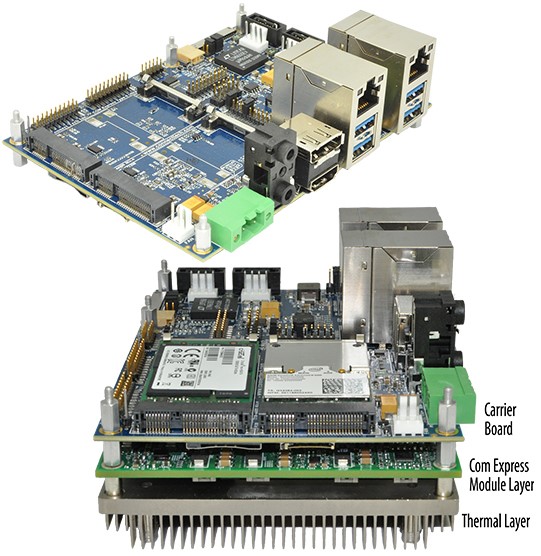

COM Express® Type 6 Ultra Lite Carrier
CM22002 is a compact carrier board which matches the dimensions of a COM Express® Basic module.
CM22002 is ideal for space constrained applications, and supports extended temperature ranges of -40℃ to +85℃.
Compatibility | SD Card | |
n COM Express Type 6 Modules | n Micro SD Card Slot | |
Mini-PCIe Expansion | Storage | |
n 2 Mini PCI Express Slots | n 4 SATA Ports: 2x mSATA, 2x on-board connectors | |
USB | Serial | |
n 6 USB Ports: 4 USB 3.0 ports available via dual front panel n stacked connectors, 2 USB 2.0 ports available via DIL header | n 5 Serial Ports: 1x RS-232 from COM Express, and 2x RS-232 & n 2x RS-485 from on board PCle UART | |
Network | GPIO | |
n 2 Gigabit (10/100/1000) Ethernet Ports | n 8-bit GPIO | |
Display Interfaces | Audio | |
n 4 Display Interfaces: HDMI, DisplayPort, LVDS & VGA | n 2x Stereo 1/8” Jacks, 1x Input, 1x Output | |
Power | Temperature | |
n Single +12V DC Input | n -40℃ to +85℃/-40°F to 185°F | |
Dimensions | ||
n 125mm x 95 mm |
